The Mery Explosive Engine Kit Project - Phase 2

mery61

Close up of the Crosshead and Stuffing Box in the Body.

mery63

Finalizing the Main Bearings.

mery62

How the new Crankshaft and Main Bearings look.

mery64

Now the Flywheel can be machined.

mery65

The Belt Pulley can be done, too.

mery66

The first operation on the Connecting Rod; turning the center down.

mery67

The tapered center section done, the ends prepped.

mery70

Cutting the external radius on the Crosshead end.

mery71

The completed Rod minus the bushing.

mery78

The start of the Rod Boxing: two halves of bronze soldered together.

mery81

Once cut to size and shape, the bearing surface is bored.

mery83

Finally, the thrust surfaces are relieved.

mery84

Now all the parts come together, complete with new rod bolts and nuts.

mery85

A view of the completed 'bottom end'.

mery89

The engine at this stage, left view.

mery90

Current right view.

mery93

The beginnings of the Eccentrics hubs.

mery95

Turning the offset diameter of an Eccentric hub.

mery96

The two completed hubs and the holding fixtures used to machine them.

mery98

The finished hubs and bands along with the miniature hardware.

mery99

Putting the final touches on the Eccentric bands.

mery100

The completed Eccentrics ready for drilling the set screw holes.

mery101

The raw Exhaust Chambers, separated, ready to machine.

mery102

One of the many mill operations required to finish the Exhaust Chambers.

mery103

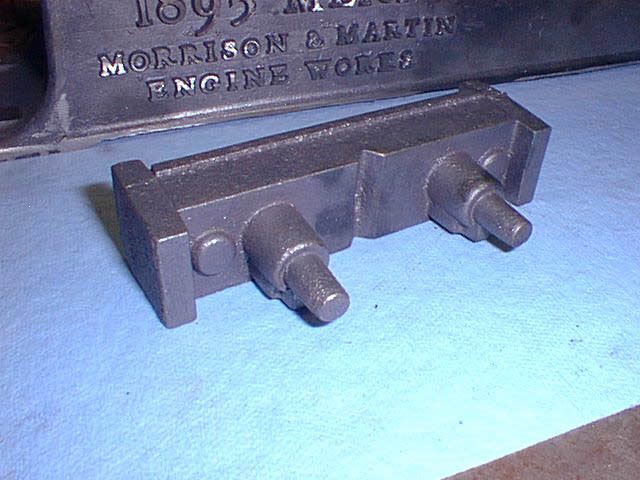

The Explosion Chambers, raw, still attached to each other.

mery104

Before and after machining shots of the Explosion Chambers.

mery109

Inside view of an Explosion Chamber ready for the ports to be drilled and Valve Guide pressed in.

mery113

View of the Explosion Chambers on the Cylinder. The small pipe fittings were originally water connections.

At this point with over 244 machine hours invested.
